Oxygen CONCENTRATOR
JAY 5
JAY 10
JAY 10

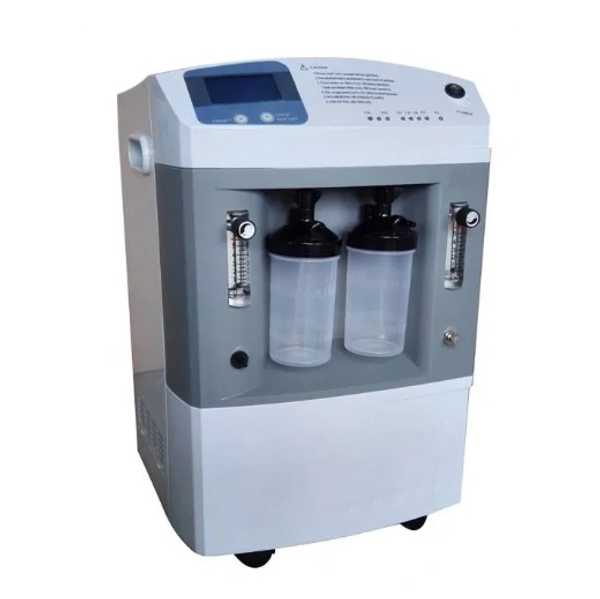

Oxygen Concentrator (CE and FDA Approved )
Dual flow: Can be used for 1 or 2 persons
Features :
· Total Flow rate: 0 – 5 Ltrs per minute
· Purity : 93%
· Outlet Pressure(Mpa) : 0.04-0.07
· Sound level :< 50db
· Power : AC220V+/- 10% 50/60 1Hz
· Power Consumption : < 480W
· LDC Display : Switch time,operating pressure , present working time.Accumulating time ,presetting time from 10 mins to 40 hours
· Alarm : Power failure alarm , High & Low pressure alarm
· Net Weight 25kgs
· Size (mm) 365x375x600
Optional :
· Nebulizer (Atomization)
· Low Purity alarm : when oxygen purity is above 82% , it will give blue light; when the purity is below 82% (82%, not included), it will give red light
· Maintenance alarm :alarm for maintenance after 3000 hours operation
· Alarm for high temperature inside systems above 50C
· Pulse oximeter: fingertip pulse oximeter is available for monitoring patient oxygen saturation on site.
· Small LDC display,accumulating time,present working time
JAY 10
JAY 10
JAY 10
Oxygen Concentrator (CE Approved )
Dual flow: Can be used for 1 or 2 persons
Features :
· Total Flow rate: 0 – 10 Ltrs per minute
· Purity : 93%
· Outlet Pressure(Mpa) : 0.04-0.07
· Sound level :< 50db
· Power : AC220V+/- 10% 50/60 1Hz
· Power Consumption : < 550W
· LDC Display : Switch time,operating pressure , present working time.Accumulating time ,presetting time from 10 mins to 40 hours
· Alarm : Power failure alarm , High & Low pressure alarm
· Net Weight 28kgs
· Size (mm) 365x375x600
Optional :
· Nebulizer (Atomization)
· Low Purity alarm : when oxygen purity is above 82% , it will give blue light; when the purity is below 82% (82%, not included), it will give red light
· Maintenance alarm :alarm for maintenance after 3000 hours operation
· Alarm for high temperature inside systems above 50C
· Pulse oximeter: fingertip pulse oximeter is available for monitoring patient oxygen saturation on site.
· Small LDC display,accumulating time,present working time
